Putting it all together

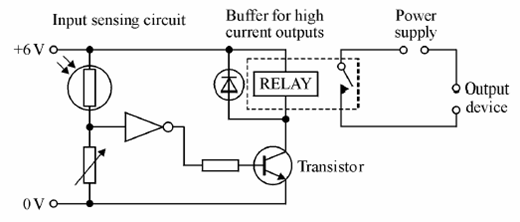

To protect the transistor when the relay is switched off, a reversebiased diode is placed across the relay.

Candidates should be able, when provided with the above circuit, to:

• explain how the LDR supplies the required input to the gate;
• explain how different light intensities affect the output device;
• explain how to modify it to do a different specified job;
• draw a modified circuit diagram.
